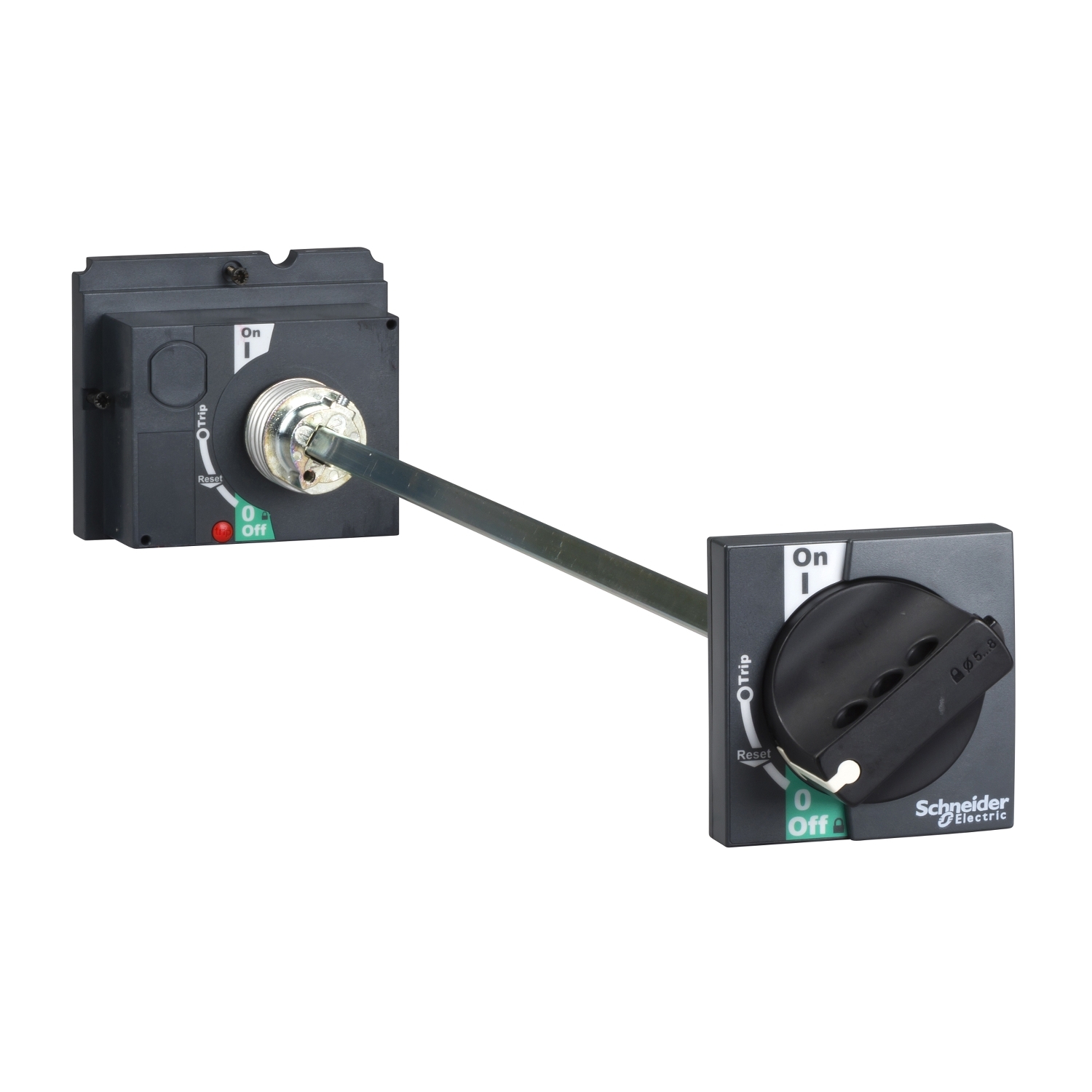

It is an extended rotary handle for Compact NSX 100/160/250, PowerPact Multistandard H/J frames and EasyPact CVS 100/160/250 devices.
It is suitable for isolation and
It is used for standard applications
It maintains the access to trip unit settings and to the push to trip button.
It is equipped with a standard black handle
There is an indication of the three device positions O (OFF), I (ON) and tripped
This extended version makes possible to operate devices installed at back of switchboards, from the switchboard front
The distance between the back of the circuit breaker and the switchboard door is from 185mm to 600mm
The degrees of protection are IP55 and IK08
This rotary handle is padlockable in the OFF position using 1 to 3 padlocks not supplied (shackle diameter 5 to 8mm)
As an option,
It is possible to install a Ronis or Profalux keylock on the base of the handle to obtain the same function as with a padlock.
