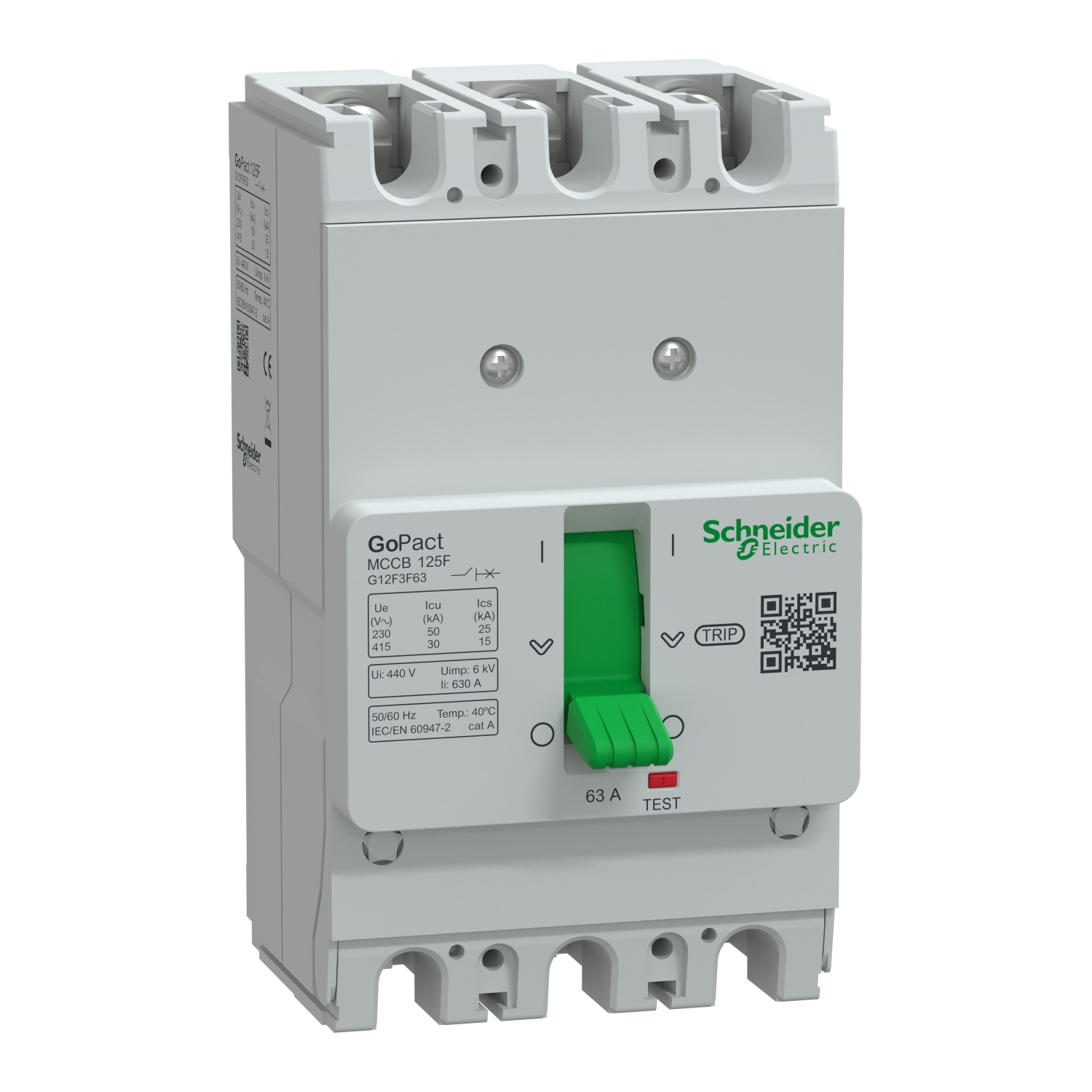

G12F3F63 Schneider Electric Circuit breaker, GoPact MCCB 125, 3 poles, 30kA at 415VAC, 63A rating, TMD trip unit, fixed thermal protection

14% VAT will be added at Checkout
2,913.04 EGP
G12F3F63
(Out of stock) Buy in advance
+
This product is part of the new GoPact Molded Case Circuit Breakers range (MCCB)

It is a complete 3 poles circuit breaker made of a 125A breaker frame and of a thermal magnetic trip unit (TMD)

GoPact MCCB has a good price-performance ratio for basic applications and delivers a reliable electrical protection for your applications

The breaking capacity (Icu) is 30kA rms at 415VAC 50/60Hz

The operational voltage is 415VAC 50/60Hz

This product embeds a 63A rating (In) thermal-magnetic trip unit (TMD)

This TMD trip unit provides a fixed thermal protection Ir (against overloads) set to 1xIn (63A)

And it provides a fixed magnetic (against short-circuits) protection set to 10xIn (630A)

GoPact MCCB comes with a variety of optional accessories simple to choose and to install

Product dimensions are 75mm (Width) x 130mm (Height) x 60mm (Depth)

The weight is 0.7kg

GoPact MCCB 125 is IEC 60947-1 and IEC 60947-2certified

GoPact MCCB range benefits from Schneider Electric qualityassurance

Product Brand:
Schneider Electric
Rated Braking Capacity:
30 KA
Rated Current:
63 A

G12F3F63 (G12F3F63, 112 Kb) [Download]
