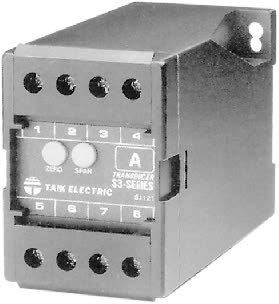

S3-AD current converter
Input: 0 - 1A ( 50 Hz )
Output: 4 - 20 mA
Supply: 220 VAC
can be used in one-way or three-system, the input signal is output as a single-stage amplifier, such as input signal is non-sinusoidal (up to 30% of 3rd harmonic content), optional TRMS Using the rms value of the input signal, the effective value is calculated, and then the output converted to the equal ratio is amplified.
Precision measurement even for distorted wave(TRMS)
Placed on the rail type with DIN.
Designed according to the dimensions of the German Standards Association DIN 46277.
AC 220V ±15%,50/60HZ
Power consumption: AC ≦ 2.5 VA, DC ≦ 3W
Power effect: ≦0.1% R.O.
Waveform effect: ≦0.2% R.O. at distortion factor 30%
Aux. power source:AC 110V ±15%,50/60HZ
AC 220V ±15%,50/60HZDC24V, 48V, 110V, ±10%
